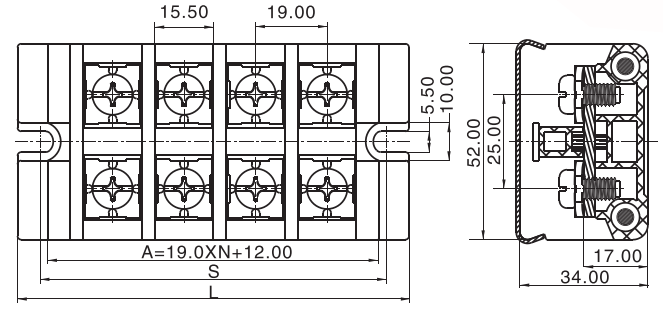

位數 N |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
|
總長L |
66 |
85 |
104 |
123 |
142 |
161 |
180 |
199 |
218 |
237 |
256 |
257 |
294 |
313 |
332 |
|
|
固定孔距S |
53.6 |
72.6 |
91.6 |
110.6 |
129.6 |
148.6 |
167.6 |
186.6 |
205.6 |
224.6 |
243.6 |
262.6 |
281.6 |
300,6 |
319.6 |
TECHNICAL DATA
|
端子間距(Center Spase) |
19. 0mm |
|
壓線範圍(Wire Range) |
14mm2(Max) |
|
螺釘扭距(Screw Torque) |
18 Ibf. in |
|
額定電流(Rated Current) |
600V,60A |
|
衝擊耐壓(Surge Voltage) |
6000V |
|
絕緣材料(Insulation Body) |
PC,UL94,V-0 |
|
螺釘材質(Screw Material) |
M6,STEEL |
|
端子材質(TerminaI Body) |
BRASS |
|
操作溫度(Temperature) |
-40°C~105°C |
